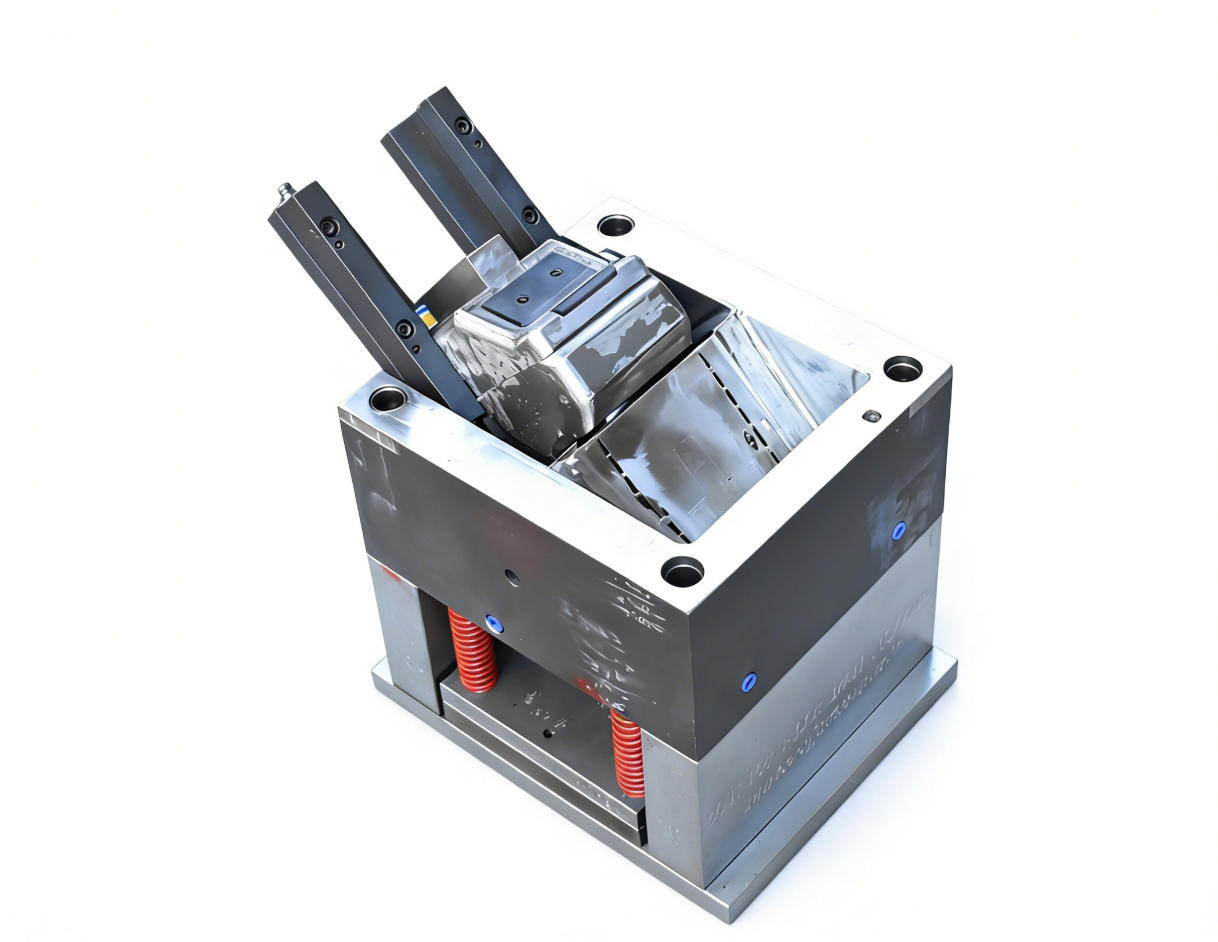

Body For Floor Drain Pipe Fitting Mould

Mould name: Body For Floor Drain Pipe Fitting Mould

Cavity:1cavities

Mould size: 110/75 mm

Mould steel:Germany2316 china2316 or4cr13 for the cavity and core

mould structure:Oil cylinder

Hardness of core/cavity: HRC 40-45°degree after vaccum heat treatment

Injection moulding machine:450T

      Taizhou Huangyan Hong Jin mould Co., Ltd was established in 2002.We are professional in design and manufacture the pipe fitting mould for more than 23  years.

We are looking forward to long cooperation with you.

Following is the main information for your reference.

The main reasons for the warping and deformation of injection molds

Dimension root cause specific influencing factors

The product design has uneven shrinkage, uneven or abrupt wall thickness, and lacks reinforcing ribs

Uneven cooling, filling, and ejection of mold structure, improper placement/quantity of gates, uneven arrangement of cooling water channels, and unbalanced ejection system

Improper molding process parameters, inappropriate holding pressure/time, poor control of mold/material temperature, insufficient cooling time.
