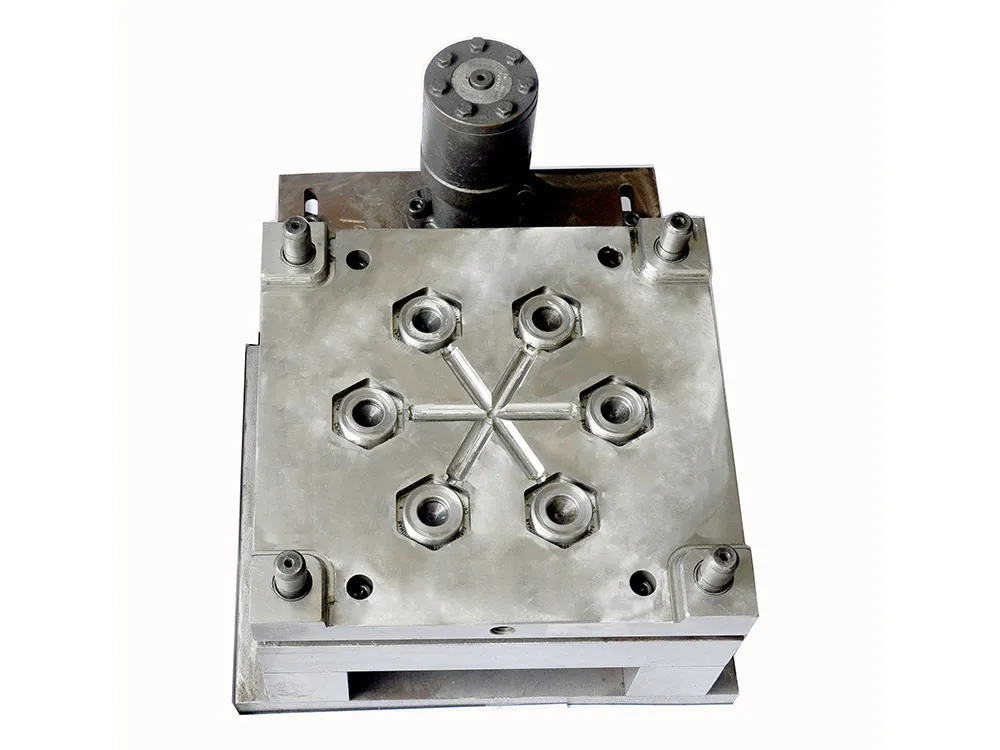

CPVC Cap Pipe Fitting Mould

    CPVC Cap Pipe Fitting Mould

    Cavities:6 cavities Structure: motor Material:CPVC mold structure:Cold runner slider structure Cavity / core steel :2316 or4cr13 for the cavity and core Hardness of core/cavity: HRC 40-45 degree Injection molding machine:250T
  • Share:
  • Contact us Inquiry

CPVC injection  Pipe Fitting Mould

General Mold Specifications:


Name:cpvc  cap pipe fitting mould


Plastic material:PVC


Steel of Cavity & Core:PVC for stainless 4cr13


Steel of Mould base: S45C  base  made by hongjin


Cavity NO.  :8 cavites


Fitting standard: and standard


Core pulling system:hydraulic cylinder or screw motor


Gate system:Tunnel gate/Direct gate etc.


Design software:AutoCAD /UG


Mould heat treatment: Tempering/ Quenching /nitriding

Surface treatment: Polish.

Mould ejector way: Ejector pin/ Slide.

Hardness of Cavity & Core: 38-42HRC

Core pulling system:Motor /oil cylinder/ stripping plate/machinery.

Mould Accessories:DME /china Standard.

Cooling system:the core use  baffle  for cooling and big core use plastic thread tube

Surface finish:Diamond polish

Molding life:500,000-2,000,000shots

Runner:Cold or Hot

Delivery time:65-75work days

Packing:wooden case

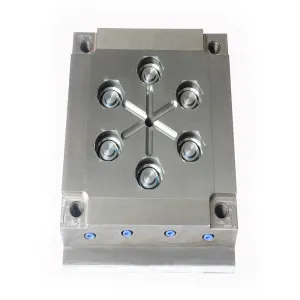

CPVC injection  pipe fitting mould

CPVC cap pipe fitting mould.png

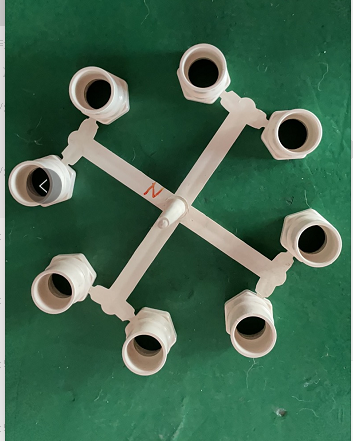

      CPVC injection  pipe fitting mould

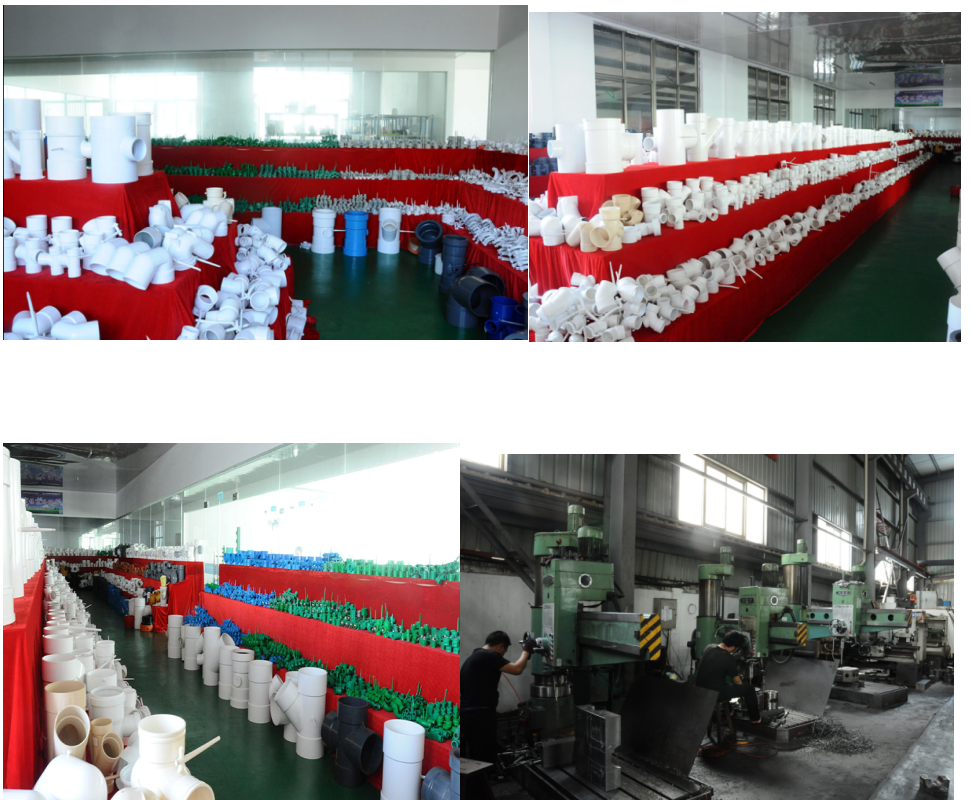

About hongjin mould:

Taizhou Huangyan Hong Jin mould Co., Ltd.Located in Huangyan, Zhejiang Province, the famous hometown of molds, this place is close to the river, the sea and the road. It is located in Jiangsu, Zhejiang and Luzhou commercial circles with advantageous geographical position, convenient transportation and abundant funds, talented people and advantageous development conditions. The company is a research and development, design, production and sales of professional mold manufacturing enterprises. Professional design and manufacture of pipe fittings mold: UPVC water supply and drainage mold, PP-R hot and cold water pipe fittings mold, PE pipe fittings mold,pp and pvc collapisble  pipe fittings mold, PPSU pipe fittings mold. Pp irragation pipe fitting mould,PVC electrical pipe fitting mould and so on


CPVC injection pipe fitting mould.png

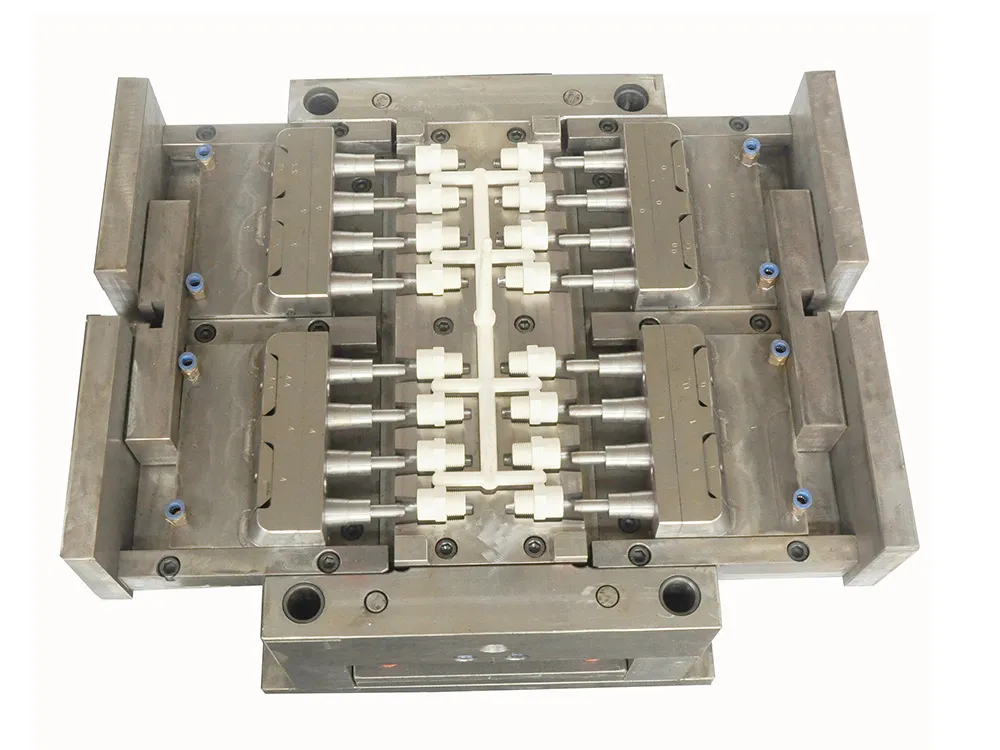

                      CPVC injection  pipe fitting mould


Packing and shipping 1. MOULD: After the mould is installed, the mould cavity core is coated with anti-rust agent, the anti-rust oil is then packed with film, and then installed into the wooden box. 2. Shipping: FOB Ningbo





Our Service: 1. Get the spare parts ready before the mould is shipped, and put them into the container to deliver to the customer. If there is a problem in the production process, the customer tells us, we give the customer the solution within one day as far as possible, in order to solve the problem in time
