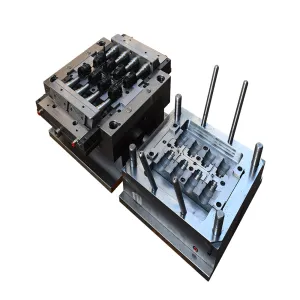

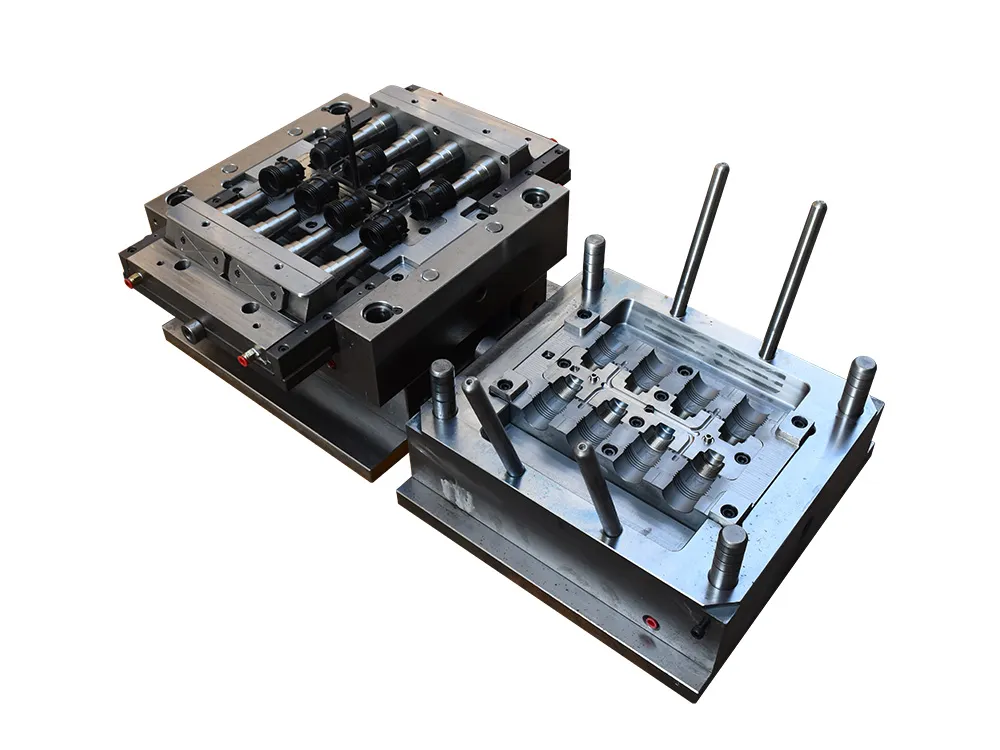

PP Injection Pipe Fitting Mould

Item name : male socket

Cavities:8 cavities

Material:pp

mold structure:Diagonal guide column slider structure

Cavity / core steel :2738 or718for the cavity and core

Hardness of core/cavity: HRC 32-45 degreeafter vaccum heat treatment

Injection molding machine:250T

Hongjin mould business style: UPVC pipe mould, PP-R pipe mould, Flared pipe mould, PE pipe mould, ABS pipe mould, draining water pipe fitting mould, Plastic Valve Mould ,pp-h collapsible pipefitting mould PET bottle perform ,PPSU mould , and all kinds of commodity moulds.

 Our factory has been specialized in mould industry more than decade, Thus we have plenty of experience of manufacturing mould.

Welcome to hongjin mould visit us

About  pipe fitting mould inclined top, slider core pulling

1: The inclined top surface should be 0.1mm lower than the core surface to prevent the top wall from being fuzzed; the inclined top must be used as a guide block, and the countersunk groove on the back of the installation template should be tightly matched or positioned as a positioning pin

2: The inclined top can be removed from a hole that passes through the bottom plate and the thimble bottom plate and whose angle is consistent with the inclined top angle.

3: The inserts on the inclined top and the slider are fixed reliably (the screws are tightened or the embryo head is inserted from the back).

4: The sliding parts must have an oil groove (except the thimble), and the surface is nitrided, including bead, wear plate, inclined top, inclined top seat, guide block, forced reset; (large slider according to customer requirements)

5: The angle of the inclined guide post of the slider is 2-3 degrees smaller than the angle of the locking surface of the slider.

8: The slide block is used as a limit block, and the internal spring must be installed in the counterbore of the slide block; the external spring must be used as a spring protection block to prevent flying out and hurting people.

9: The bottom of the large and medium-sized sliders (width>70mm) needs to be made of wear-resistant plates and open oil grooves, and the surface of the wear-resistant plates is 0.1-0. 5mm higher
