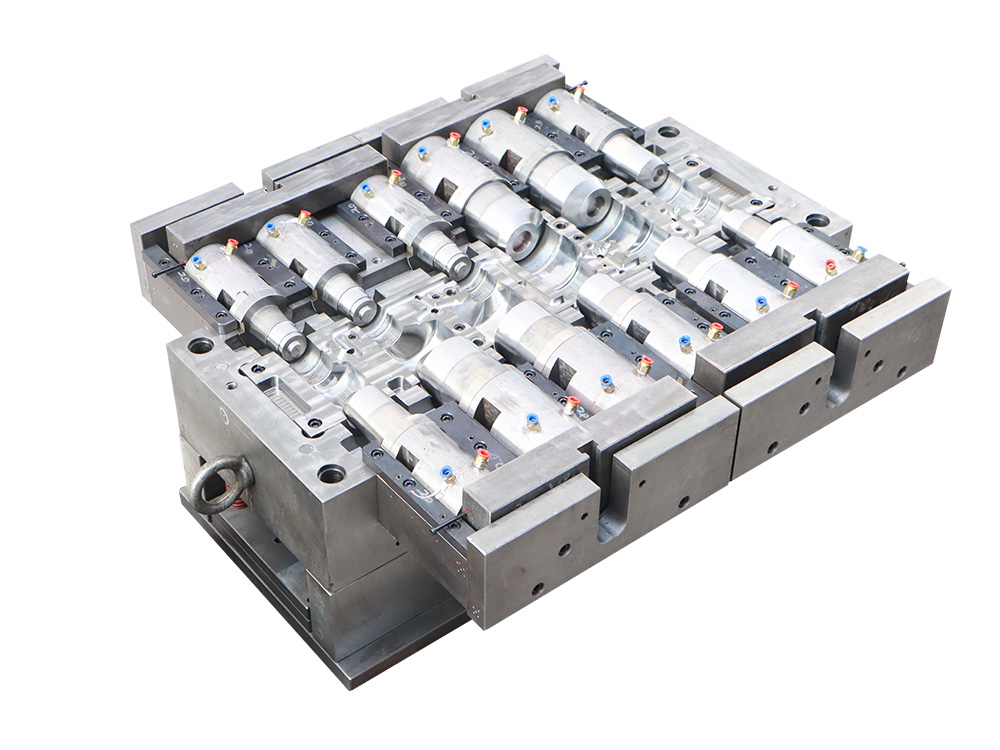

UPVC Skew Cross  Pipe Fitting Mould

Mould name: UPVC Skew Cross  Pipe Fitting Mould

Cavity: 1 cavities

Mould size:110mm

Mould steel:Germany2316 china2316 or4cr13 for the cavity and core

Gate :direct gate

mould structure:Oil cylinder

Hardness of core/cavity: HRC 40-45°degree after vaccum heat treatment

Injection moulding machine: 450 T

Taizhou Huangyan Hong Jin mould Co., Ltd was established in 2002.We are professional in design and manufacture the pipe fitting mould for more than 23  years.

We are looking forward to long cooperation with you.

Following is the main information for your reference.

FAQ:

1.What is your MOQ?

1 set is Ok

2.What is your delivery time?

The time of delivery is around 60-75 work days.

3.What is the shipping port?

MOULD ship to Ningbo or Shanghai port are ok.

4.What is your payment terms?

We accept 40% T/T in advance,balance 60% TT before shipment

5.How should I contact you?

You can contact me by email whatsapp or wechat

FAQ:

1.What is your MOQ?

1 2 3 set is ok

2.What is your delivery time?

The time of delivery is around 60-75 work days.

3.What is the shipping port?

We ship mould to Ningbo or Shanghai port.

4.What is your payment terms?

We accept 40% T/T in advance,balance 60% TT before shipment

5.How should I contact you?

You can contact me by email whatsapp or wechat

So how about edge gate for the mould

Its gate is a little bigger than submarine gate. The product cycle time is short. But the gate cannot be separated from the product, so it need worker to cut. And product surface looks not so well.

UPVC skew cross pipe fitting mould plays a crucial role in manufacturing high-quality pipe connectors, elbows, sockets, crosses, and other components used in modern drainage systems. Our molds ensure the accuracy, durability, and cost-effectiveness of the accessories, meeting industry standards for strength and leak resistance.

Taizhou Huangyan Hong Jin mould Co. Ltd was established in 2002.We are professional in design and manufacture the pipe fitting mould for more than 23  years.

We are looking forward to long cooperation with you.

About the pipe fiting mould Processing :Order → drawing → mold design → mould steel preparation → inspection →fly cutting mold frame →cnc mold frame →rough CNC machining of mold cavity→ drill the water line→ (quenching) → precise CNC machining of mold cavity → mechanical processing (mold parts processing and so on.) → inspection → assembly → inspection → mold test →inspection → etching/polishing → (nitriding/electroplating) → mold test → inspection → delivery

Application of UPVC Skew Cross Pipe Fitting Mould

Pipe fitting Moulds are used to manufacture different types of pipe fittings, including elbows, tees, reducers, couplings, and flanges. These Moulds are essential for producing high-quality pipe fittings in a cost-effective and efficient manner.
Here are some of the common applications of pipe fitting Moulds:

Plumbing and HVAC Systems: Pipe fitting Moulds are widely used in the plumbing and HVAC industry to produce various types of fittings, such as elbows, tees, couplings, and flanges. These fittings are used to connect pipes and tubes in residential, commercial, and industrial buildings.

Oil and Gas Industry: The oil and gas industry relies heavily on pipe fittings for transporting liquids and gases over long distances. Pipe fitting Moulds are used to produce a wide range of fittings, including reducers, elbows, tees, and flanges, that are used in pipelines, refineries, and offshore rigs.

Chemical Processing Industry: The chemical processing industry requires specialized pipe fittings that can withstand high temperatures, pressure, and corrosive environments. Pipe fitting Moulds are used to manufacture fittings made of materials such as PVC, CPVC, PP, and PVDF that are suitable for chemical processing applications.

Water Treatment Industry: The water treatment industry uses pipe fittings to transport and treat water for residential and industrial use. Pipe fitting Moulds are used to produce fittings that can withstand the high pressures and flow rates needed for water treatment applications.

Agriculture Industry: Pipe fittings are used in the agriculture industry for irrigation, drainage, and water supply systems. Pipe fitting Moulds are used to manufacture fittings made of materials that are resistant to chemicals, ultraviolet light, and weathering, which are essential for outdoor agricultural applications.
