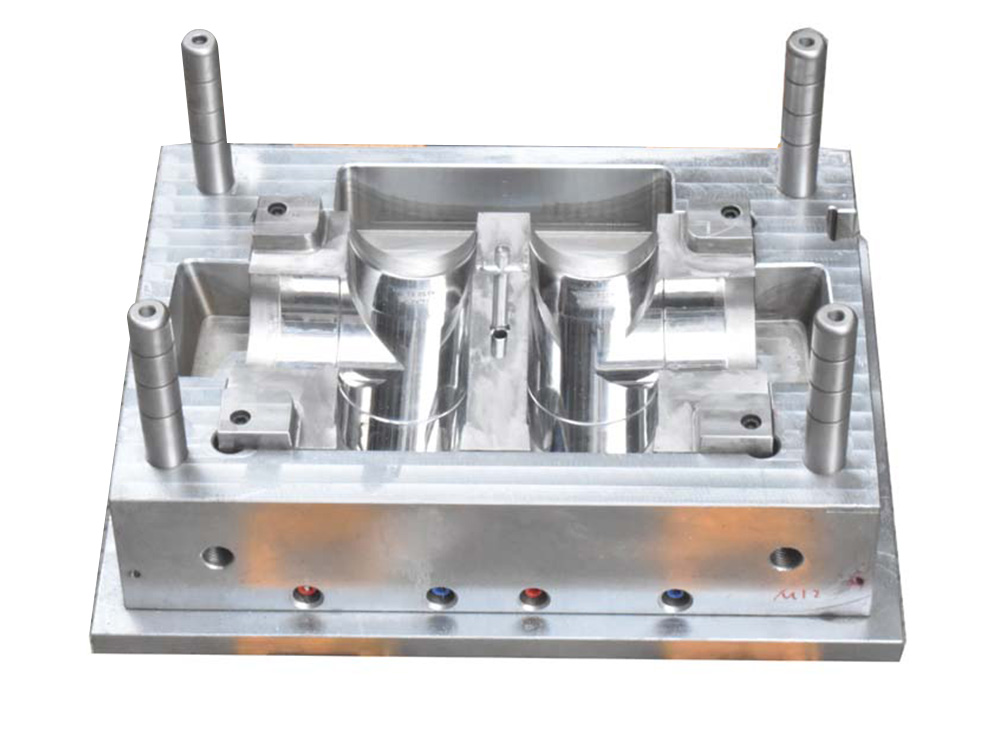

U-PVC Screw Cap Pipe Fitting Mold: Design and Functionality A U-PVC screw cap pipe fitting mold is a precision tool used in the injection molding process to manufacture threaded pipe fittings made from unplasticized polyvinyl chloride (U-PVC). These fittings are essential in plumbing, irrigation, and industrial piping systems, providing secure, leak-proof connections. The mold must be meticulously designed to ensure high dimensional accuracy, durability, and efficient production. Key Components and Design Features 1. Core and Cavity – The mold consists of a core (male part) and cavity (female part) that form the external and internal geometries of the screw cap. The cavity shapes the outer body, while the core creates the internal threads and sealing surfaces. 2. Thread Formation – The mold incorporates rotating or collapsible cores to form precise threads. For screw caps, the threads must match industry standards (e.g., NPT, BSP) to ensure compatibility with pipes. 3. Cooling System – Efficient cooling channels are integrated to regulate temperature and minimize cycle time. Proper cooling prevents warping and ensures consistent part quality. 4. Ejection Mechanism – After molding, ejector pins or sleeves release the fitting without damaging the threads. Some designs use unscrewing mechanisms to smoothly demold threaded parts. 5. Ventilation – Air vents prevent gas traps, reducing defects like burns or incomplete filling. 6. Material Selection – Mold components are typically made from hardened steel or aluminum alloys to withstand high-pressure injection and resist wear from abrasive U-PVC. Production Process 1. Material Injection – U-PVC pellets are melted and injected into the mold under high pressure. 2. Cooling and Solidification – The material cools, taking the shape of the screw cap. 3. Demolding – The mold opens, and the fitting is ejected, often with automated assistance. 4. Post-Processing – Threads may be inspected and deburred if necessary. Quality Considerations - Precision Threads – Threads must be smooth and accurately sized to ensure proper sealing. - Dimensional Stability – The mold must account for U-PVC’s shrinkage (~0.5–1%) to maintain tolerances. - Surface Finish – A polished mold surface ensures smooth fittings, reducing friction during assembly. Applications U-PVC screw cap fittings are widely used in: - Plumbing systems (water supply, drainage) - Chemical processing (corrosion-resistant piping) - Agriculture (irrigation systems) Conclusion A well-designed U-PVC screw cap pipe fitting mold ensures high productivity, longevity, and consistent part quality. By optimizing cooling, ejection, and thread-forming mechanisms, manufacturers can produce reliable fittings that meet industry standards. The mold’s precision directly impacts the performance of the final product, making robust design and material selection critical for success.
