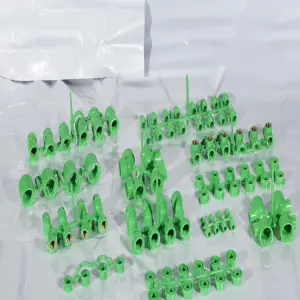

Product name : CPVC female tee Pipe Fitting Mould

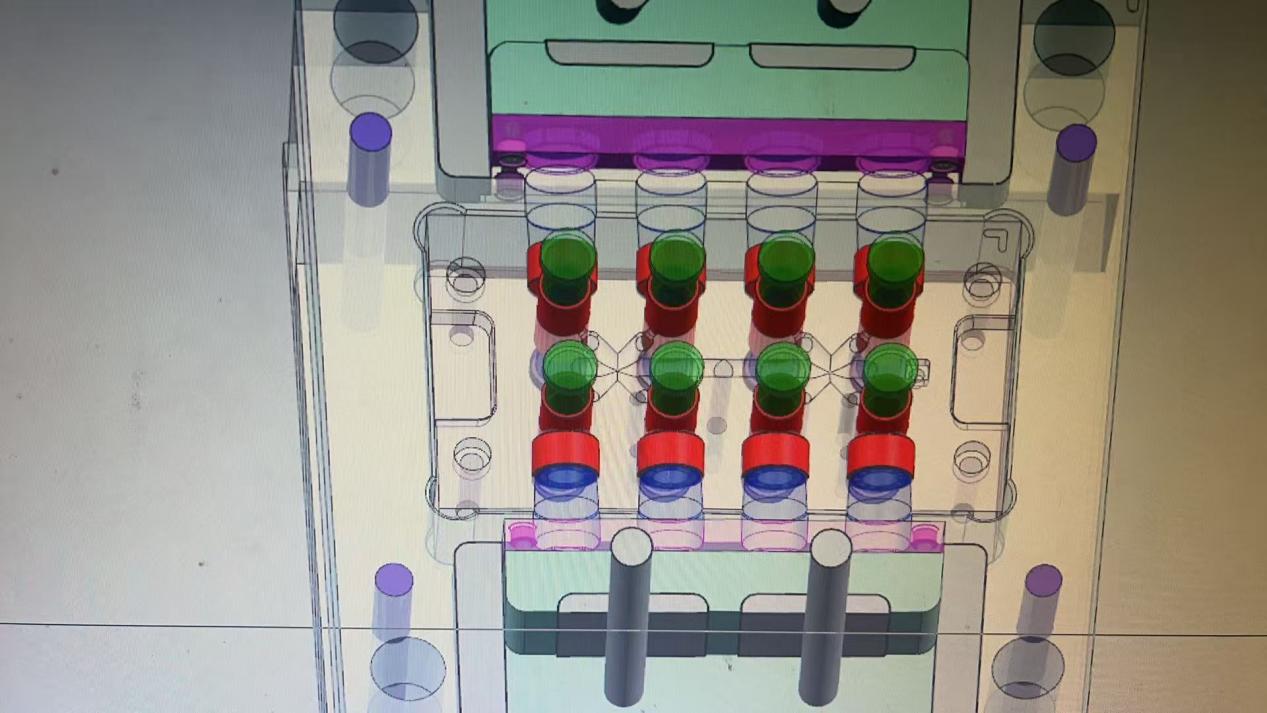

CPVC female tee pipe fitting mould 3D molding image

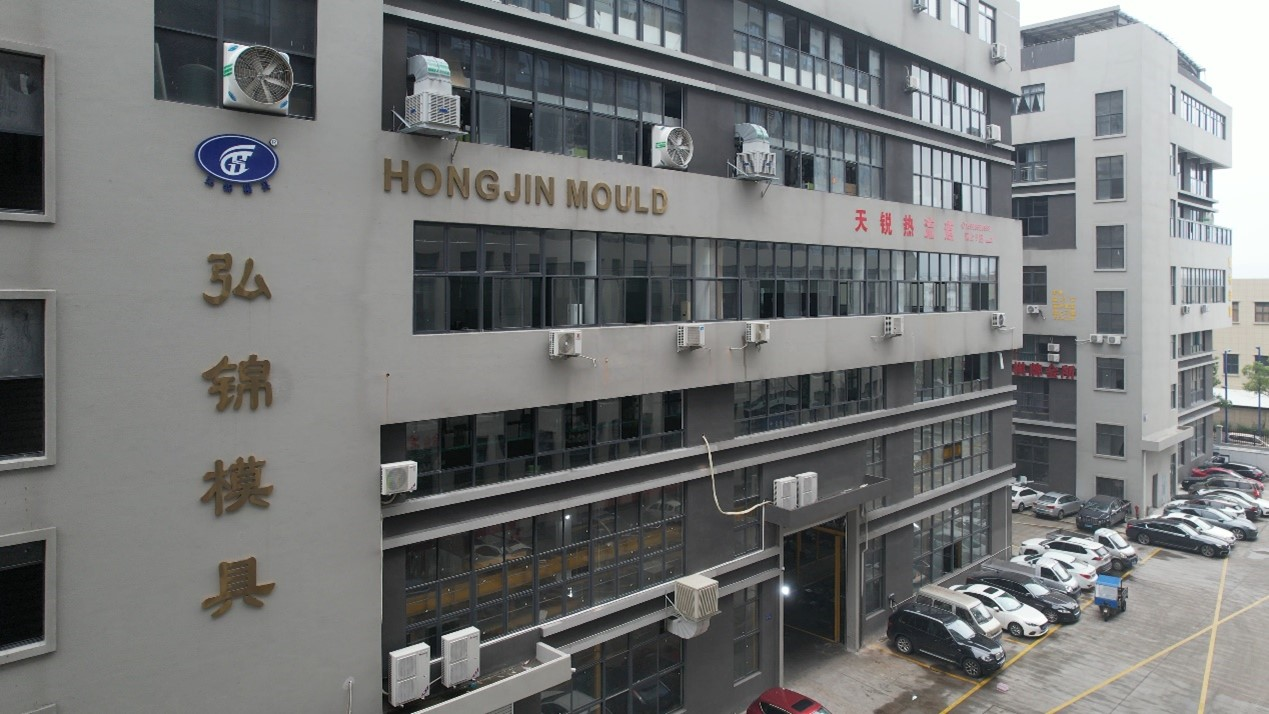

     Taizhou Huangyan Hongjin Mould Co., Ltd., founded in 2002, is located in Taizhou Huangyan, mould town of China. lt is an enterprise specializing in the design and manufacture of plasticpipe fittings moulds.

      We specialize in manufacturing all moulds of pipe fitting series: PVC Drainage Pipe Fitting Mould, PPR Cold And Hot Water Pipe Fitting Mould, PE Pipe Fitting Mould, collapsible pipe fitting mould, Plastic Valve Mould, Cpvc Pipe Fitting Mould, electrical conduit fitting mould and agricultural, irrigation series mould, etc. Each set of mould is customized for customers.

Packaging & Shipping

How to choose the mold for CPVC Female Tee Pipe Fitting Mould ?

      The selection of molds for CPVC female tee pipe fitting mould requires systematic consideration of pipe fitting structure, production requirements, key mold mechanisms and costs.When actually choosing, you can follow the following steps and pay attention to related matters: Clarify the requirements and analyze the plastic parts. The first task is to carefully analyze your three-way pipe fittings drawings, and clarify the form of the internal thread, the accuracy requirements, and the direction and size of the three ports.These directly determine the complexity of the mold. Determine the number of cavities according to production requirements.

     The design and selection of the parting surface of the key mechanism: This is the benchmark for mold design. It should be ensured that the plastic parts can be left on the preset side for release, and try to choose the largest contour of the plastic parts.

     Lateral core pumping mechanism: This is the core and difficulty of the CPVC female tee pipe fitting mould .

     Oblique guide column side core pumping: the structure is mature, widely used, and suitable for most situations.

     Hydraulic side core pumping: If the core pumping distance is long or the structural space is limited, the hydraulic method can provide greater core pumping force and stroke.

     Standardization and cost: Under the premise of meeting the requirements, giving priority to the selection of high-quality CPVC female tee pipe fitting mould helps to control costs and shorten manufacturing cycles.

      Choosing an CPVC female tee pipe fitting mould is essentially a process of finding the best balance between product requirements, production efficiency, mold complexity and manufacturing cost.
